Named Queries

Description

The List control supports multiple named queries that can be chosen at runtime. The selector can be a Radio Button, Dropdown, or Checkbox control, and can be placed anywhere in the UX—including inside the List (by wrapping the selector in an Injectible container).

Named queries are supported only for Lists that use a SQL data source.

Enable named queries

In List Builder → Data Source, check Has named queries, then click the smart field for Named query definition to configure queries and presentation.

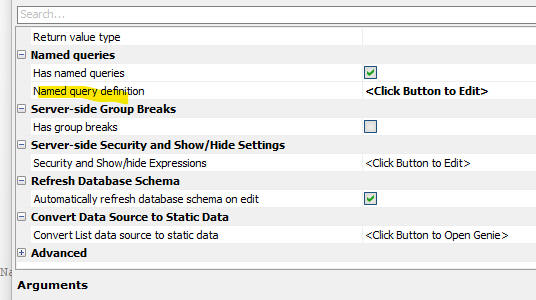

Has named queries (List Builder → Data Source)
Has named queries (List Builder → Data Source)

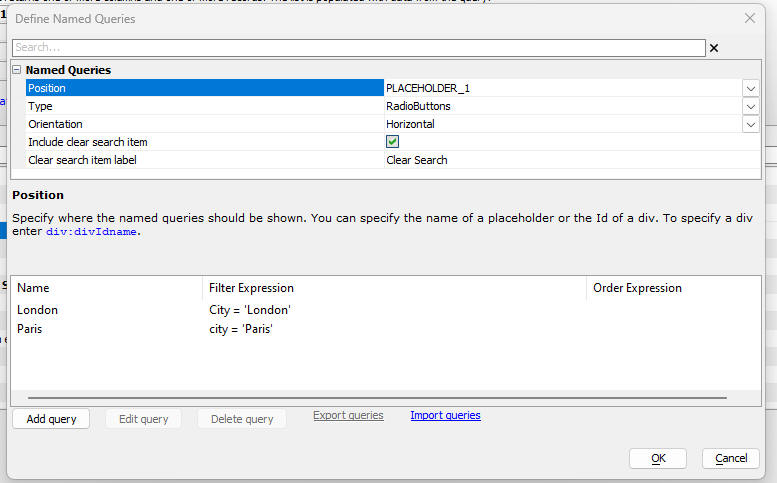

Named query definition dialog
Named query definition dialog

The following properties are of note:

Position

Name of a Placeholder control, or a div inside static HTML. To target a div use: div:divIdname (e.g. div:div1).

Type

Radiobutton, Checkbox, or Dropdown. For Checkbox, specify whether multiple conditions are combined with AND or OR. See also Checkbox Control.

Orientation

When Type is Radiobutton, choose vertical or horizontal layout.

Include clear search item

Adds an option that clears the current named query.

Clear search item label

Text for the clear option. Supports language/text dictionary tags.

Define queries

Select Add query to add each Named query and set its filter and order. You can add as many named queries as needed.

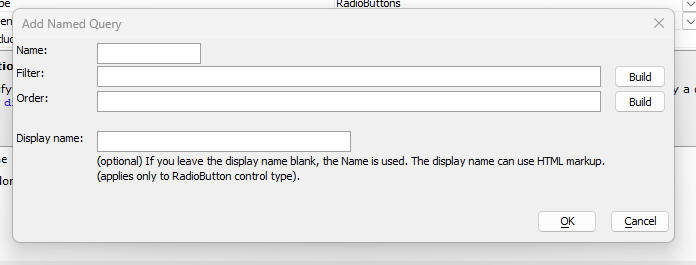

Adding a query with filter and order
Adding a query with filter and order

Inject the selector into the List

Wrap the selector’s Placeholder in an Injectible container and inject it into the Fixed header or Data header of the List.

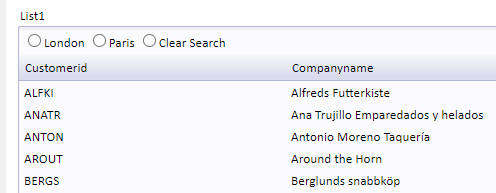

Selector embedded in the List’s Fixed Header
Selector embedded in the List’s Fixed Header

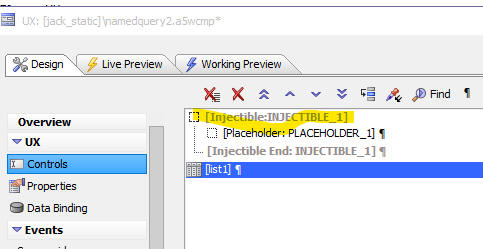

Wrapping the Placeholder in an Injectible container
Wrapping the Placeholder in an Injectible container
Injecting the container into a Fixed/Data header
Injecting the container into a Fixed/Data header

List event

When a named query is selected, the onNamedQuerySelected List event fires. A common use is switching the List Layout based on the selection.

JavaScript method

Call {dialog.object}.namedListQuery() to apply a named query programmatically.

{dialog.object}.namedListQuery(listName, queryName)
// OR combine by expression using placeholders in curly braces:
{dialog.object}.namedListQuery(listName, '{london} OR {paris}')

Video (2023-11-21)

See Also
